Tilting Mould Thermoformer

Download Catalogue

Please provide the below credentials to get our Catalogue emailed.

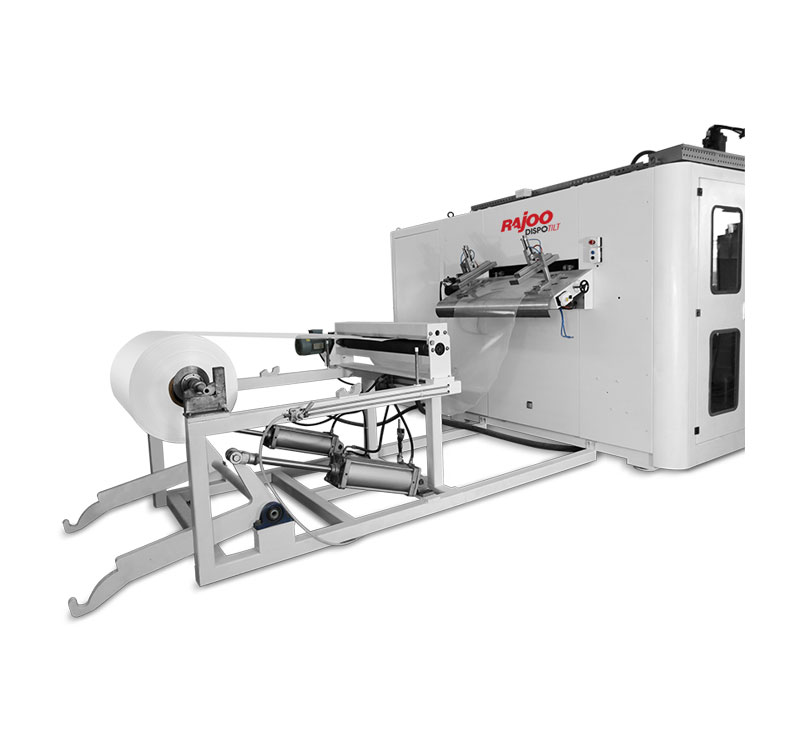

Dispotilt

Tilting Mould Thermoformer - Key Features

    Specification

  • Sheet width range : 600 – 800 mm
  • Forming area : 750 x 450 mm
  • Sheet thickness : 0.3 to 2 mm
  • Minimum product weight : 1.4 gms
  • Max. mechanical speed : 40 cycles/ min

    Salient Features

  • Versatile machine for PP / PS / PET thermoforming
  • Servo driven sheet transport assembly with preheating arrangement
  • Heating tray with infrared ceramic heaters mounted with specially designed reflectors
  • Servo Drive robust tilting style forming station
  • Indigenously designed and Manufactured mould with quick product cooling
  • Automatic stacker for drinking glass og 1.4 gms
  • Automatic glass counting and packing unit
  • Unwinding station with pneumatic roll loading system
  • Online skeleton winder with motorized adjustment
  • Automatic lubricating system
  • Touch screen control panel

    Application

  • Varieties of plastic glass for
  • Beverage
  • Ice-cream
  • Yogurt

Tilting Mould Thermoformer
